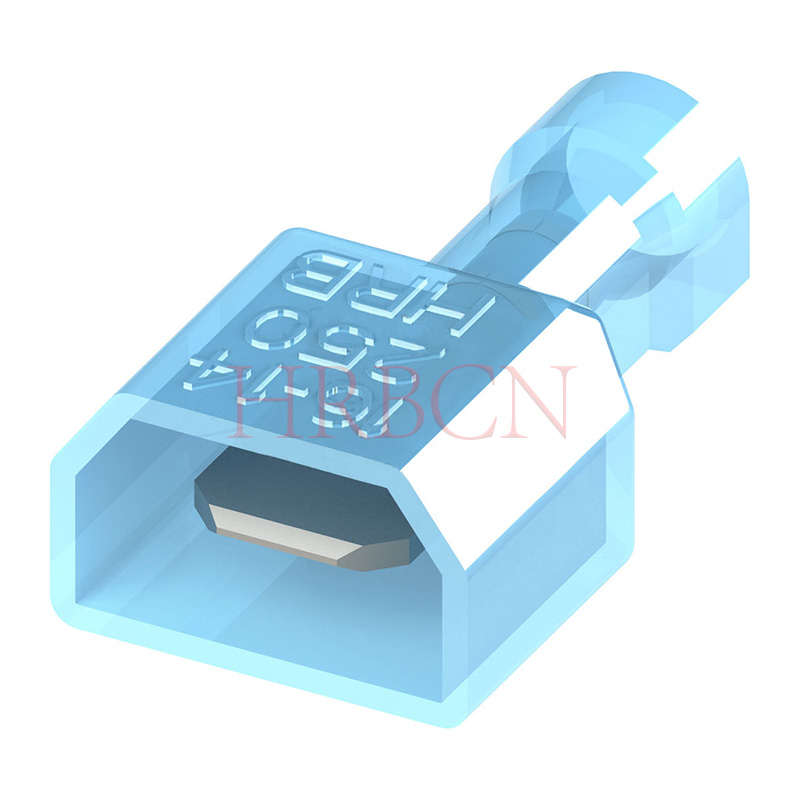

(250) rechte mannelijke terminal catalog.pdf
| Onderdeelnr. | A | B | C | D | E | F | G | H | Draad maat | Ins dia. maximaal |
| M6351FN(S)-5(8)-b1 | 12.30 | 0.78 | 23.70 | 8.30 | 7.50 | 6.30 | 15.60 | 0.80 | AWG#16-14 | 6,60 mm |
| M6351FN(S)-5(8)-b1(A) | 12.30 | 0.78 | 23.70 | 8.30 | 7.50 | 6.30 | 15.60 | 0.80 | AWG#16-14 | 6,60 mm |
| M6351FN(S)-5(8)-R | 12.30 | 0.78 | 21.80 | 5.20 | 7.50 | 6.30 | 15.60 | 0.80 | AWG#22-18 | 3,05 mm |
| M6351FN(S)-5(8)-R(A) | 12.30 | 0.78 | 21.80 | 5.20 | 7.50 | 6.30 | 15.60 | 0.80 | AWG#22-18 | 3,05 mm |
| M6351FN(S)-5(8)-b | 12.30 | 0.78 | 21.80 | 6.05 | 7.50 | 6.30 | 15.60 | 0.80 | AWG#16-14 | 4,06 mm |
| M6351FN(S)-5(8)-b(A) | 12.30 | 0.78 | 21.80 | 6.05 | 7.50 | 6.30 | 15.60 | 0.80 | AWG#16-14 | 4,06 mm |
| M6351FN(S)-5(8)-R1 | 12.30 | 0.78 | 23.70 | 7.30 | 7.50 | 6.30 | 15.60 | 0.80 | AWG#22-18 | 5,84 mm |
| M6351FN(S)-5(8)-R1(A) | 12.30 | 0.78 | 23.70 | 7.30 | 7.50 | 6.30 | 15.60 | 0.80 | AWG#22-18 | 5,84 mm |
| M6351FN(S)-5(8)-R1(A) | 13.25 | 0.78 | 23.70 | 10.20 | 8.95 | 6.30 | 15.60 | 0.80 | AWG#12-10 | 8,13 mm |
| M | 6351 | F | N | S | 8 | (5) | R1 | (A) |
| A | B | C | D | E | F | G | H | J |
A. Type: M=Afgewerkt
B. Producttype: 6351=Volledig geïsoleerde rechte mannelijke terminal.
C. F=Volledig geïsoleerd
D. N=Nylon B=Messing
E. Verpakkingsmethode: S=strip L=los stuk
F. Serie: 1=2,8 mm(0,110 inch) 2=5,2 mm(0,205 inch)
8=4,8 mm(0,187 inch) 5=6,3 mm(0,250 inch)
G. 5=dikte 0,50 mm (0,020 inch) 8=dikte 0,80 mm (0,032 inch)
H. R=Rood (22-18 AWG) R1=Max. geleiderisolatie. diameter van 3,80 mm
b=blauw (16-14 AWG) b1=Geleiderisolatie max. diameter van 4,50 mm
J. A=Blind gattype blank=Doorgaand gattype
